How does the consumption analysis work?

Answer:

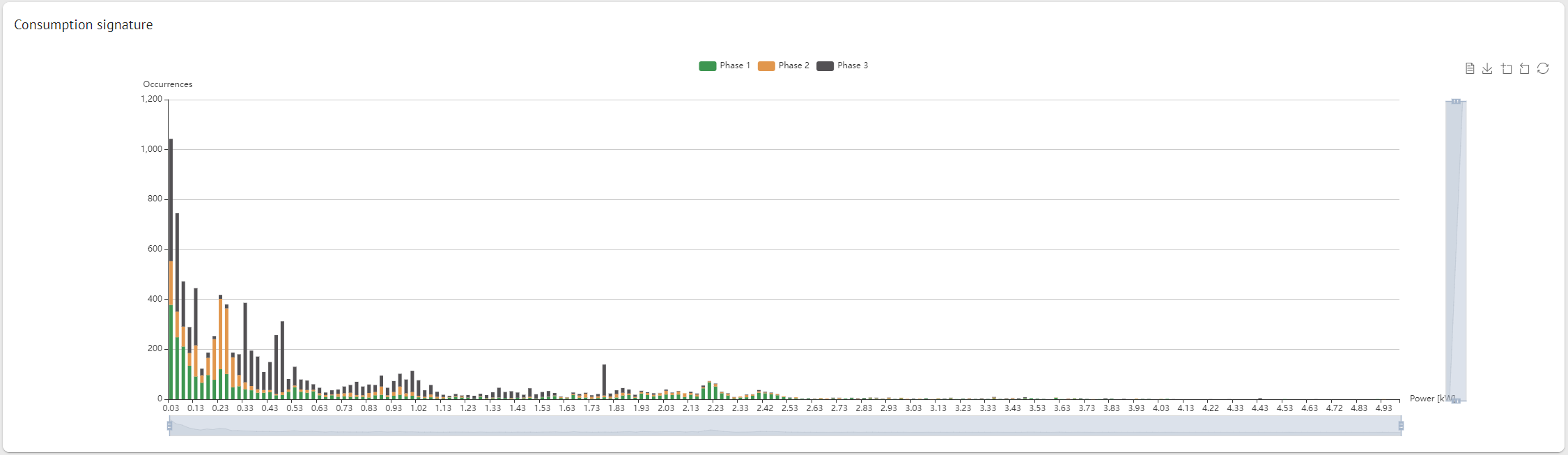

The consumption profile is a tool that can be used to identify specific power patterns per phase. In the example below, you can see that there is a peak of events around 1.78 kW. This may indicate that there is a component in the facility at exactly 1.78 kW that often comes into operation on phase 1. You can also see that phase 3 has a larger peak around 10 kW, where there may be another component connected to this phase that consumes quite often around 2.2 kW. Additionally, you can see that the most common consumption in the facility occurs around 0-1 kW.
